HPE Cloudline CL2100 Gen10 Server 6146/192GB/2x1,92TB - repasovaný

1U

438 x 43.5 x 730



MR91-FS0

2nd Generation Intel^® Xeon^® Scalable Processors
Intel^® Xeon^® Scalable Processors
Dual processor, TDP up to 205W

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

2 x LGA 3647
Socket P

Intel^® C621



24 x DIMM slots
DDR4 memory supported only
6-channel memory architecture
RDIMM up to 64GB supported
LRDIMM up to 128GB supported
Supports Intel^® Optane™ DC Persistent Memory (DCPMM)
1.2V modules: 2933/2666/2400/2133 MT/s

Maximum verified DCPMM configuration:

* Ambient temperature 35°C
* 2nd Generation Intel^® Xeon^® Scalable processor 205W (Max.)
* DCPMM 256GB x12 pcs

DCPMM installation locations:
DIMM_P0_(A1, B1, C1)
DIMM_P0_(D1, E1, F1)
DIMM_P1_(G1, H1, I1)
DIMM_P1_(J1, K1, L1)

Note:
1. 2933 MT/s for 2nd Generation Intel^® Xeon^® Scalable Processors only.
2. Intel^® Optane™ DC Persistent Memory for 2nd Generation Intel^® Xeon^® Scalable Processors only.
3. The maximum number of DCPMM that can be installed is based on a maximum operating (ambient) temperature of 35°C.
4. To enquire about installing a greater number of DCPMM, please consult with your GIGABYTE technical or sales representative.

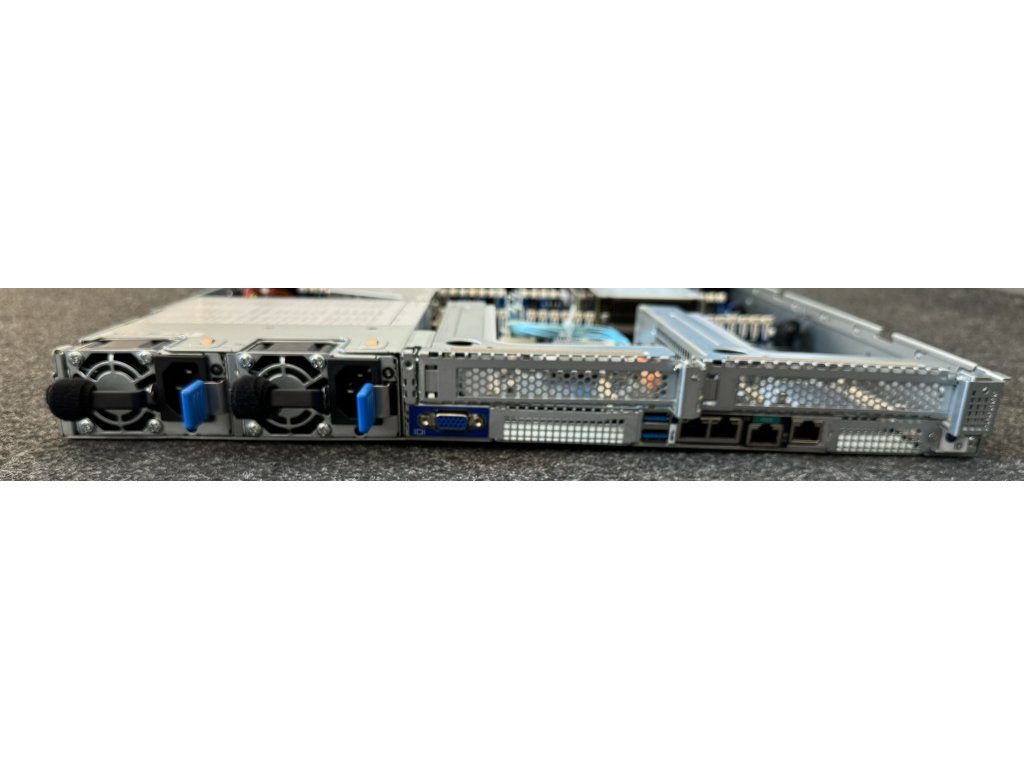

Rear side:
2 x 1Gb/s LAN ports (1 x Intel^® I350-AM2)
1 x 10/100/1000 Mbps Management LAN

Integrated in Aspeed^® AST2500
- 1 x VGA port

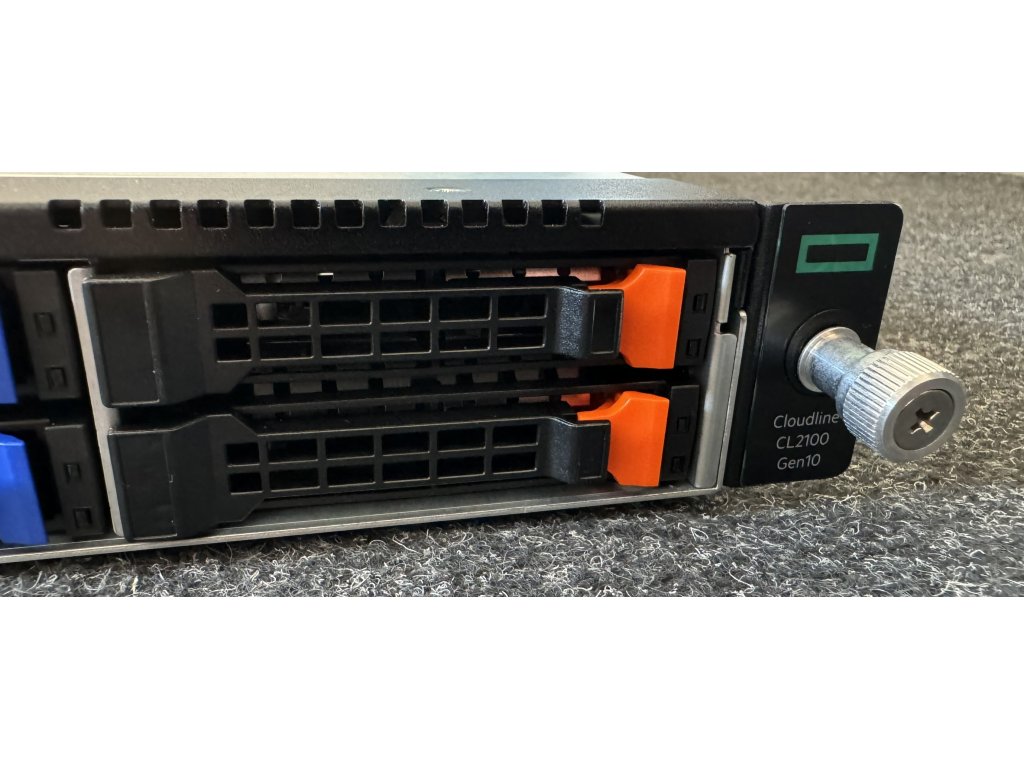

Front side:
10 x 2.5" SATA/SAS hot-swappable bays

Default configuration supports:
10 x SATA drives
or
2 x SATA drives
8 x SAS drives

SAS card is required for SAS devices support

2 x 7-pin SATA III 6Gb/s with SATA DOM supported
By using pin_8 or external cable for power function

Depends on SAS add-in cards

Intel^® SATA RAID 0/1/10/5

Riser Card CRS1021:
- 2 x PCIe x8 (Gen3 x8) low-profile slots, from CPU_0

Riser Card CRS1015:
- 1 x PCIe x16 (Gen3 x16) low-profile slot, from CPU_1

2 x OCP mezzanine slots with PCIe Gen3 x16 bandwidth (Type1, P1, P2, P3, P4, K2, K3)

2 x Power supply connectors
4 x SlimSAS connectors
2 x SATA 7-pin connectors
2 x CPU fan headers
1 x USB 3.0 header
1 x TPM header
1 x VROC connector
1 x Front panel header
1 x Backplane board header
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper

1 x USB 3.0
1 x Power button with LED
1 x ID button with LED
1 x Reset button
1 x NMI button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

2 x USB 3.0
1 x VGA
1 x COM (RJ45 type)
2 x RJ45
1 x MLAN
1 x ID button with LED



Speed and bandwidth:
SATAIII 6Gb/s or SAS 12Gb/s

2 x Reserved U.2 ports with PCIe Gen3 x4 bandwidth

1 x TPM header with LPC interface
- Optional TPM2.0 kit: CTM000

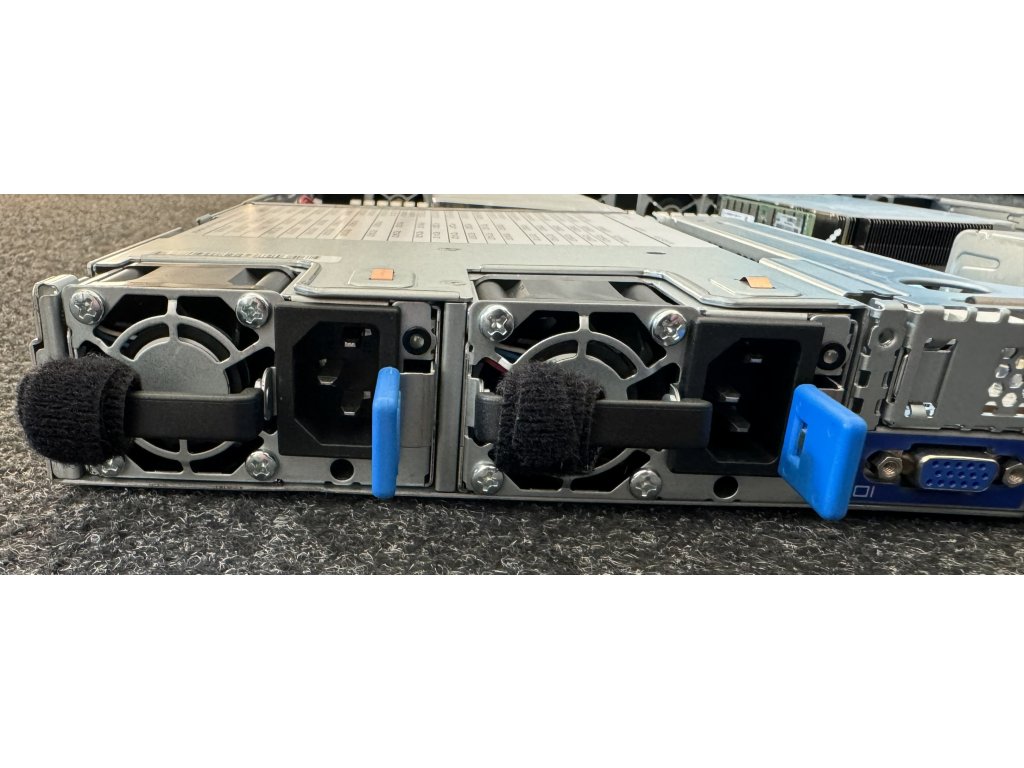

Dual 800W 80 PLUS Platinum redundant power supply

AC Input:
- 100-240V~/ 12-7A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 6A

DC Output:
- Max 1000W/ 100-240V~
+12V/ 80.5A
+12Vsb/ 3A
- Max 1200W/ 200-240V~ or 240Vdc Input
+12V/ 97A
+12Vsb/ 3A



Aspeed^® AST2500 Baseboard Management Controller
Controller supported protocol: SNMP(v2c,v3), IPMI 2.0, DCMI
Avocent^® MergePoint IPMI 2.0 web interface:

• Network settings
• Network security settings
• Hardware information
• Users control
• Services settings
• IPMI settings
• Sessions control
• LDAP settings
• Power control
• Fan profiles
• Voltages, fans and temperatures monitoring
• System event log
• Events management (platform events, trap settings, email settings)
• Serial Over LAN
• vKVM & vMedia (HTML5)

For Skylake processors:

Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.4.0 or later
Citrix Hypervisor 8.0.0 or later

Red Hat Enterprise Linux 6.9 or later
Red Hat Enterprise Linux 7.3 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later

SUSE Linux Enterprise Server 11 SP4 or later
SUSE Linux Enterprise Server 12 SP2 or later
SUSE Linux Enterprise Server 15 or later

Ubuntu 16.04.1 LTS or later
Ubuntu 18.04 LTS or later
Ubuntu 20.04 LTS or later

VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 or later
VMware ESXi 6.7 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later

Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
Microsoft Hyper-V Server: 2012 R2, 2016 & 2019

For Cascade Lake processors:

Citrix Xenserver 7.1.0 CU2 or later
Citrix Xenserver 7.5.0 or later
Citrix Hypervisor 8.0.0 or later

Red Hat Enterprise Linux 7.6 or later
Red Hat Enterprise Linux 8.0 or later
Red Hat Enterprise Linux 9.0 or later

SUSE Linux Enterprise Server 12 SP3 or later
SUSE Linux Enterprise Server 15 or later

Ubuntu 18.04 LTS or later
Ubuntu 20.04 LTS or later
Ubuntu 22.04 LTS or later

VMware ESXi 6.0 Update3 or later
VMware ESXi 6.5 Update2 or later
VMware ESXi 6.7 Update1 or later
VMware ESXi 7.0 or later
VMware ESXi 8.0 or later

Oracle Linux 7.6 UEK Release 5 Update 2
Oracle VM 3.4.6 UEK Release 4 Update 7

Windows Server 2012 R2 with Update
Windows Server 2016
Windows Server 2019
Microsoft Hyper-V Server: 2012 R2, 2016 & 2019



8 x 40x40x56mm (23,000rpm)

Operating temperature: 10°C to 35°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

15 kg

985 x 588 x 250 mm
